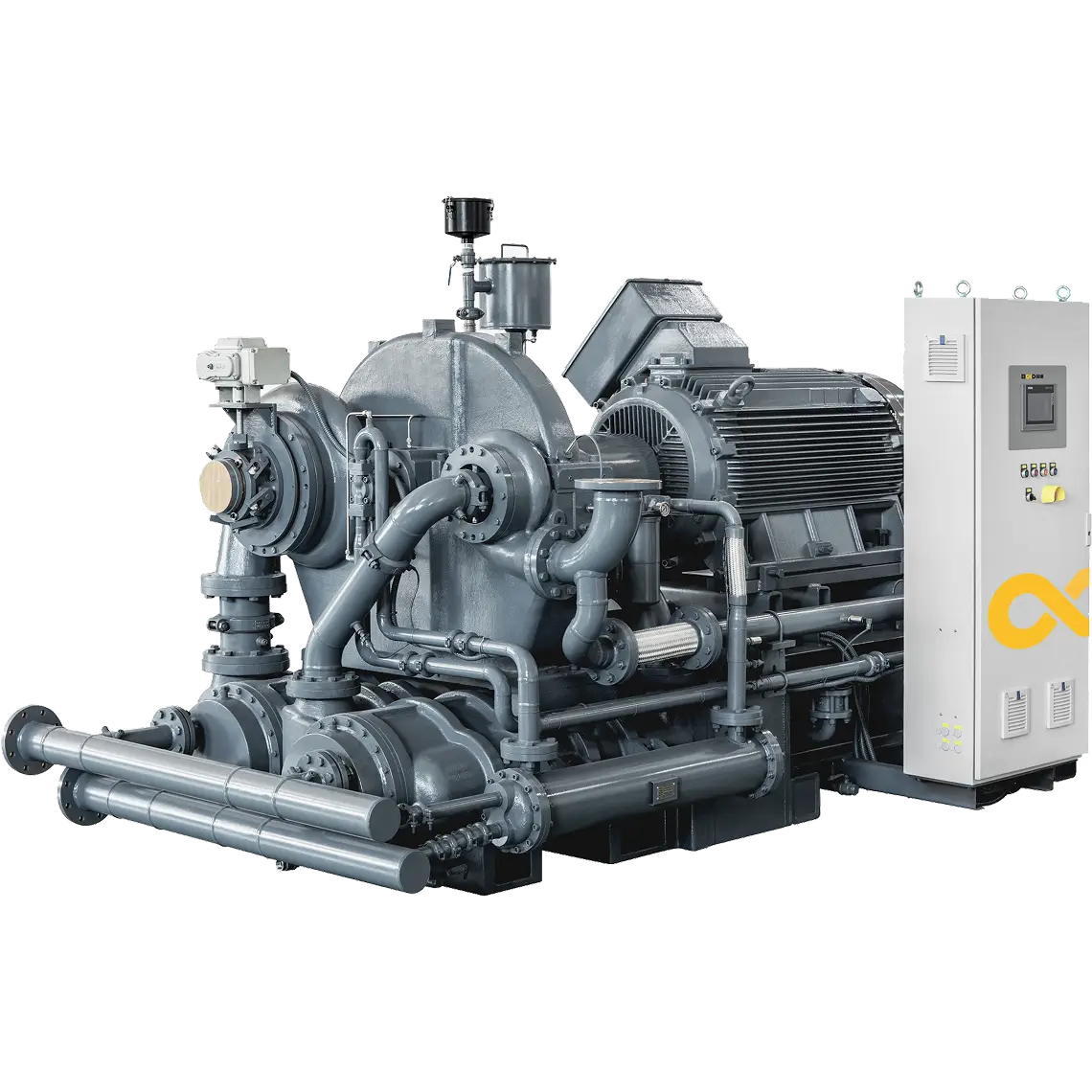

Centrifugal air compressors
Centrifugal air compressors use high-speed rotating impellers to convert kinetic energy into pressure energy. Known for their oil-free operation, high efficiency, and large capacity, these compressors are widely used in industries like power generation, chemical processing, and air separation.
Features:
- Oil-Free Air ISO 8573-1 Class 0 certified – no contamination risks
- Two-Stage Impellers High pressure with lower energy input
- Integrated Skid System Plug-and-play, modular design
- Smart Control System Remote monitoring & predictive analytics
- Low Noise Design Industrial quiet under 85 dB
- Energy Saving Up to 25% Built-in inlet guide vane + efficient impeller
Technical Specifications
|
Model
|
Pressure Bar(G)
|
Flow Range m³/min
|
Rated Power kW
|
|---|---|---|---|
|
HM6000
|
1.8-13
|
55-100
|
220-800
|
|
HM15000
|
1.8-30
|
100-250
|
315-2240
|
|
HM25000
|
1.8-30
|
220-370
|
630-3550
|
|
HM30000
|
1.8-30
|
310-450
|
800-4500
|
|
HM45000
|
1.8-16
|
450-700
|
1250-5000
|
|
HM60000
|
1.8-16
|
600-1000
|
1700-7400
|
|
HM100000
|
1.8-16
|
1000-1600
|
2600-12000
|
|
HM150000
|
1.8-16
|
1600-2500
|
4200-17500
|
|
HM250000
|
1.8-16
|
2500-4000
|
6200-28000
|
