Laser cutting machines

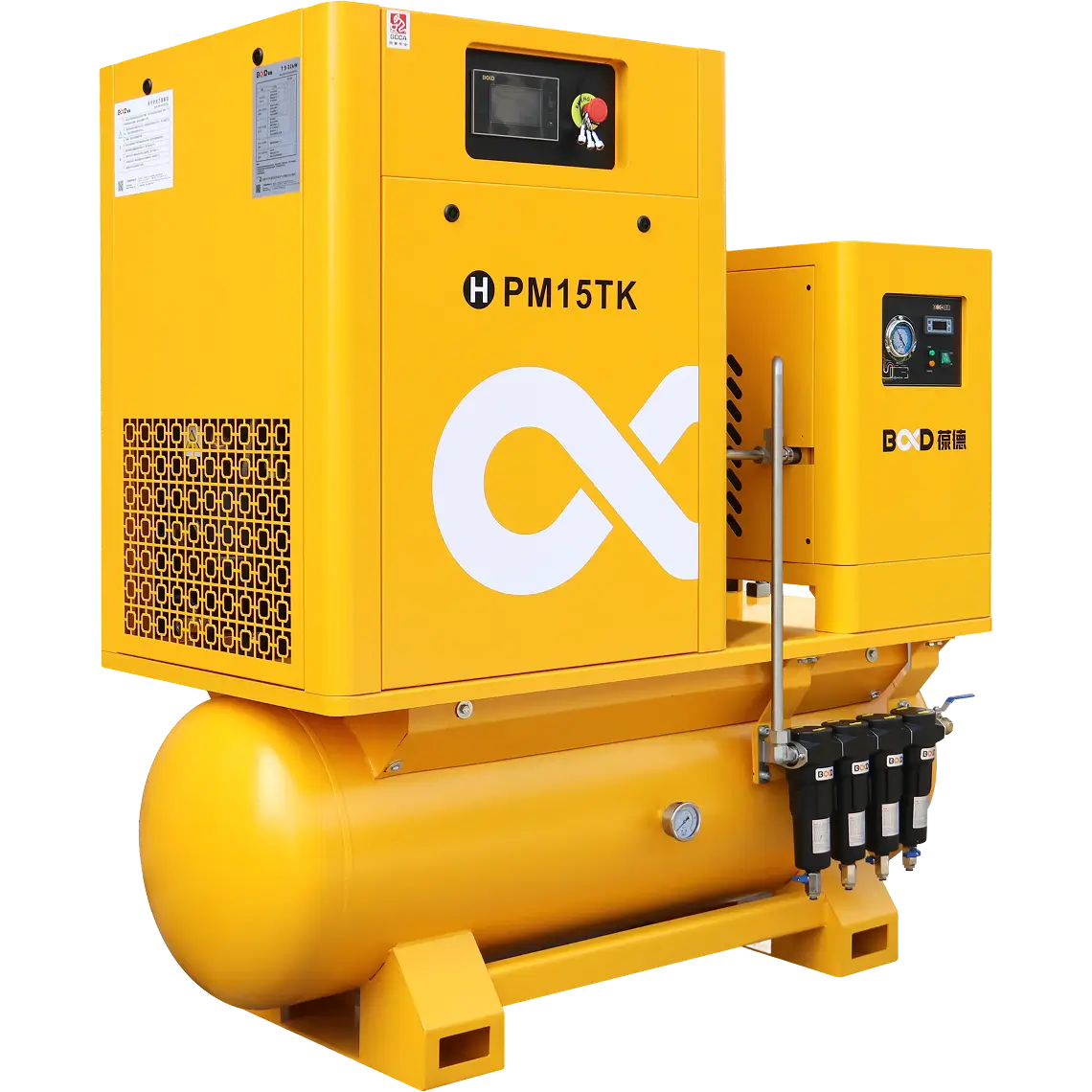

The Air Compressor for Fiber Laser Cutting Machine
Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting machine.
Features:
- Modular design, durable components
- Energy-Saving Motor Design
- Low noise and vibration, and easy maintenance
Technical Specifications
|
Model
|
Pressure Range (Bar)
|
Pressure Range (Mpa)
|
FAD CFM(ft³/min)
|
FAD CMM(m³/min)
|
Power (KW)
|
Power (HP)
|
|---|---|---|---|---|---|---|
|
PM11TK
|
12.5~15.5
|
1.25~1.55
|
13.7~34.2
|
0.39~0.97
|
11
|
15
|
|
PM15TK
|
|
|
18.0~44.8
|
0.51~1.27
|
15
|
20
|
|
PM18TK
|
|
|
25.4~63.6
|
0.72~1.8
|
18.5
|
25
|
|
PM22TK
|
|
|
32.5~81.2
|
0.92~2.3
|
22
|
30
|
|
PM22TK
|
20~25
|
2~2.5
|
21.2~42.4
|
0.6~1.2
|
22
|
30
|
